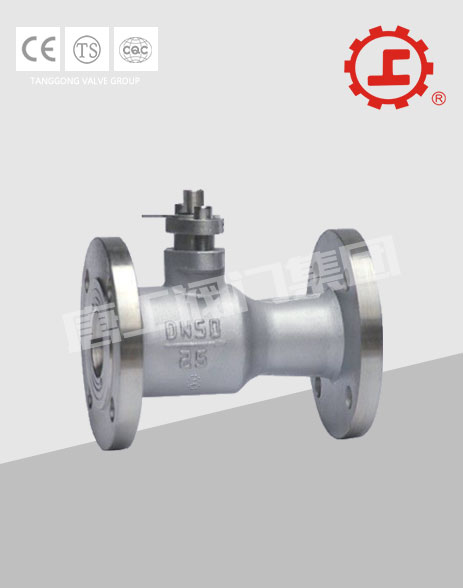

The high temperature ball valve designed by our company to replace the globe valve, it is use a new type of sealing material as the valve seat, and the similar product PTFE is used to seal the ball valve, and the service life is increased by 3-5 times.
It has the advantages of stable performance, reliable sealing, low friction, open handiness, high temperature resistance, wear resistance, oil resistance, corrosion resistance, and long service life.
|
Model |
Nominal diameter |
Size mm |
|||||||
|
L |
D |
D1 |
D2 |
b-d |
Z-Φd |
H |
D0 |
||
|
Q41M/F-16C |
15 |
130 |
95 |
65 |
45 |
14-2 |
4-14 |
105 |
150 |
|
20 |
150 |
105 |
75 |
55 |
16-2 |
4-14 |
110 |
150 |
|
|
25 |
160 |
115 |
85 |
65 |
16-2 |
4-14 |
120 |
160 |
|
|
32 |
180 |
135 |
100 |
78 |
16-2 |
4-18 |
145 |
160 |
|
|
40 |
200 |
145 |
110 |
85 |
16-3 |
4-18 |
155 |
250 |
|
|
50 |
230 |
160 |
125 |
100 |
18-3 |
4-18 |
175 |
300 |
|
|
65 |
290 |
180 |
145 |
120 |
18-3 |
4-18 |
195 |
300 |
|
|
80 |
310 |
195 |
160 |
135 |
20-3 |
8-18 |
225 |
320 |
|
|
100 |
350 |
215 |
180 |
155 |
20-3 |
8-18 |
255 |
320 |
|
|
125 |
400 |
245 |
210 |
185 |
20-3 |
8-18 |
285 |
400 |
|
|
150 |
480 |
280 |
240 |
210 |
24-3 |
8-23 |
295 |
400 |
|
|
200 |
600 |
335 |
295 |
265 |
30-3 |
12-23 |
330 |
450 |
|
|
Q41M/F-25C |
40 |
200 |
145 |
110 |
85 |
18-3 |
4-18 |
155 |
250 |
|
50 |
230 |
160 |
125 |
100 |
20-3 |
4-18 |
175 |
300 |
|
|
65 |
290 |
180 |
145 |
120 |
22-3 |
8-18 |
195 |
300 |
|
|
80 |
310 |
195 |
160 |
135 |
22-3 |
8-18 |
225 |
320 |
|
|
100 |
350 |
230 |
190 |
160 |
24-3 |
8-23 |
255 |
320 |
|
|
125 |
400 |
270 |
220 |
188 |
28-3 |
8-25 |
285 |
400 |
|
|
150 |
480 |
300 |
250 |
218 |
30-3 |
8-25 |
295 |
400 |
|
|
200 |
600 |
360 |
310 |
278 |
34-3 |
12-25 |
330 |
450 |
|
