Design standard: ASME B16.34, API 6D
Pressure-temperature rating: ASME B16.34
Face to face: ASME B16.10
Test standard: API 598
Nominal size：1/2”-50”
Pressure: 150LB~2500LB
Drive Mode: Manual, worm gear, pneumatic, electric and so on.

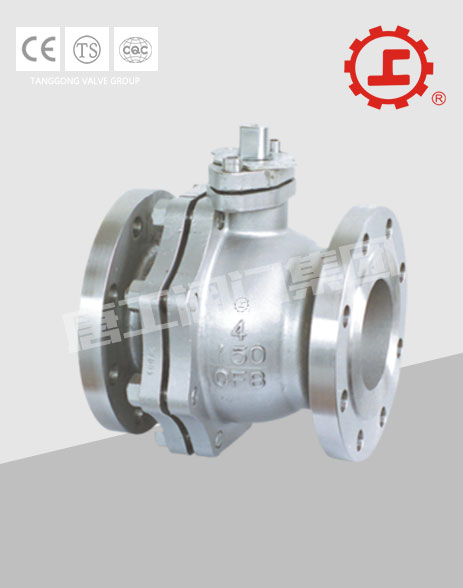

ANSI Flanged ball valve use for kinds of pipeline of Class 150~Class 2500, used to cut off or connect the line of medium, use different materials, can be separately applied to water, steam, oil, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media.
Executive standard
Design standard: ASME B16.34, API 6D
Pressure-temperature rating: ASME B16.34
Face to face: ASME B16.10
Test standard: API 598
Nominal size：1/2”-50”
Pressure: 150LB~2500LB
Drive Mode: Manual, worm gear, pneumatic, electric and so on.
Product characteristics
1.In all kinds of valves, the flow resistance of the ball valve is the smallest. When the full diameter ball valve is opened, the sphere passage, the valve body passageway and the connecting pipe diameter are equal and become a diameter, and the medium can flow almost without loss.
2.The ball valve is rotated 90 degrees can be closed to open, open and close rapidly. Compared with the same gate valve, cut-off valve, small ball valve, light weight, easy to install the pipe
Performance parameter
|
No. |
Project name |
Project name |
|||||
|
150LB |
300LB |
600LB |
900LB |
1500LB |
2500LB |
||
|
1 |
Nominal pressure(Mpa) |
2.0 |
5.0 |
10.5 |
15.0 |
25.0 |
45.0 |
|
2 |
Shell strength test (Mpa) |
3.0 |
7.5 |
15.0 |
22.5 |
37.5 |
67.5 |
|
3 |
High pressure sealing test (Mpa) |
2.2 |
5.5 |
11.0 |
16.5 |
27.5 |
47.5 |
|
4 |
Max. Temperature working pressure (Mpa) |
≤2.0 |
≤5.2 |
≤10.4 |
≤15.6 |
≤25.8 |
≤45.8 |
