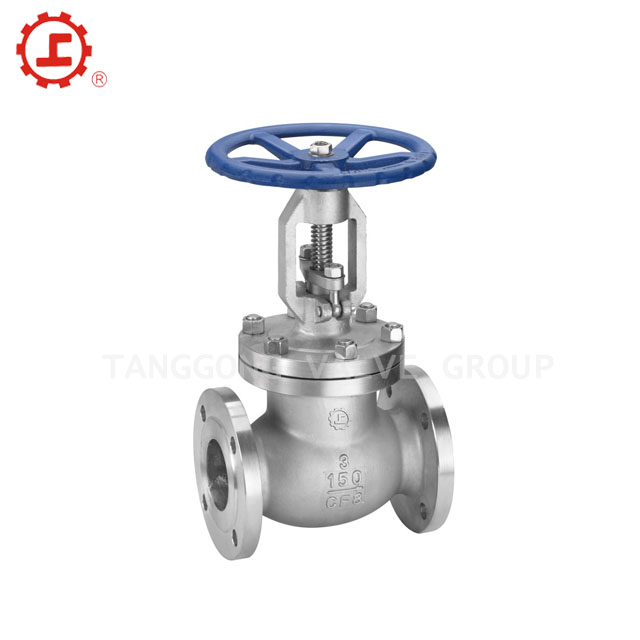

ANSI/ ASME FLANGED GLOBE VALVE
Design standard: ASME B16.34
Pressure-temperature rating: ASME B16.34
Face to face: ASME B16.10
Model: J41H,J40Y,J41W etc..
Test standard: API 598
Nominal size：1/2”-50”
Pressure: 150LB~2500LB
Drive method: Manual, gear transmission, pneumatic, electric.
American standard flange globe valve is in accordance with the American standard ANSIB16.34, British standard BS173 and other advanced foreign standard requirements of equipment. Body shape for the barrel or streamline, beautiful shape, the shape of the flow path for straight, small fluid resistance. Shutoff piece(disc) and seat sea with cone sealing, small closing force, erosion resistance, sealing reliable. The valve seat can be replaced type valve seat, can be arbitrarily combined with closing parts sealing surface material matching, in order to meet the requirements of various working conditions, extend the service life.
ANSI/ ASME FLANGED GLOBE VALVE
Design standard: ASME B16.34
Pressure-temperature rating: ASME B16.34
Face to face: ASME B16.10
Model: J41H,J40Y,J41W etc..
Test standard: API 598
Nominal size：1/2”-50”
Pressure: 150LB~2500LB
Drive method: Manual, gear transmission, pneumatic, electric.
Performance parameter
|
No. |
Project name |
Project name |
|||||
|
150LB |
300LB |
600LB |
900LB |
1500LB |
2500LB |
||
|
1 |
Nominal pressure (Mpa) |
2.0 |
5.0 |
10.5 |
15.0 |
25.0 |
45.0 |
|
2 |
Shell strength test (Mpa) |
3.0 |
7.5 |
15.0 |
22.5 |
37.5 |
67.5 |
|
3 |
High pressure sealing test (Mpa) |
2.2 |
5.5 |
11.0 |
16.5 |
27.5 |
67.5 |
|
4 |
Max. Temperature working pressure (Mpa) |
≤2.0 |
≤5.2 |
≤10.4 |
≤15.6 |
≤25.8 |
≤45.8 |
Material for main parts
|
Material of valve |
A216 WCB |
A217 WC6 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
Working temperature (℃) |
-29-425℃ |
-29-540℃ |
-46-425℃ |
-46-425℃ |
-46-425℃ |
-46-425℃ |
|
Applicable medium |
Water/Steam/Oil |
Water/Steam |
Nitrate acid |
Nitrate acid |
Nitrate acid |
Nitrate acid |
