Executive standard
Pressure-temperature rating: GB/T12224
Face to face: GB/T 12221
Test standard: JB/T 9092
Nominal size：1/2”-30”
Pressure: PN16~PN160

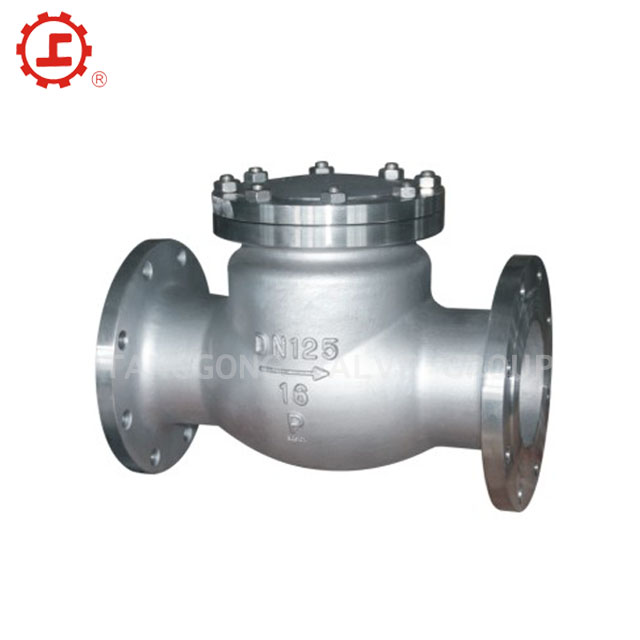

Swing check valve depends on the flow of the medium itself and open/closed the disc automatically, usually used to prevent the reserve flow of the medium of the valve, also named to the one-way valve, counter flow valve. And swing check valve can only be installed vertically not horizontally. Suitable for cleaning medium, not for medium containing solid particles and large viscosity.
Executive standard
Pressure-temperature rating: GB/T12224
Face to face: GB/T 12221
Test standard: JB/T 9092
Nominal size：1/2”-30”
Pressure: PN16~PN160
Performance parameter
|
No. |
Project name |
Project name |
|||||
|
PN16 |
PN25 |
PN40 |
PN64 |
PN100 |
PN160 |
||
|
1 |
Nominal pressure(PN) |
1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
16.0 |
|
2 |
Shell strength test (Mpa) |
2.4 |
3.75 |
6.0 |
9.6 |
16 |
24 |
|
3 |
High pressure sealing test (Mpa) |
1.76 |
2.75 |
4.4 |
7.04 |
11 |
17.6 |
|
4 |
Max. Temperature working pressure (Mpa) |
≤1.6 |
≤2.5 |
≤4.0 |
≤6.4 |
≤10.0 |
≤16.0 |
Material components material
|
Part name |
Material name |
||
|
Body |
WCB |
15CrMo |
20CrMoV |
|
WCB |
15CrMo |
20CrMoV |
|
|
Disc |
A105 |
15CrMo |
20CrMoV |
|
20Cr13 |
STL |
STL |
|
|
Shaft pin |
20Cr13 |
35CrMoR |
35CrMoV |
|
Gasket |
304+Flexible graphite |
304+Flexible graphite |
304+Flexible graphite |
|
Bolt |
35CrMoA |
35CrMoA |
35CrMoA |
|
Nut |
30CrMo |
30CrMo |
30CrMo |
|
Applicable temperature |
-29~425℃ |
-29~540℃ |
-29~560℃ |
|
Suitable medium |
Water, steam, oil etc. |
||
