Product Description

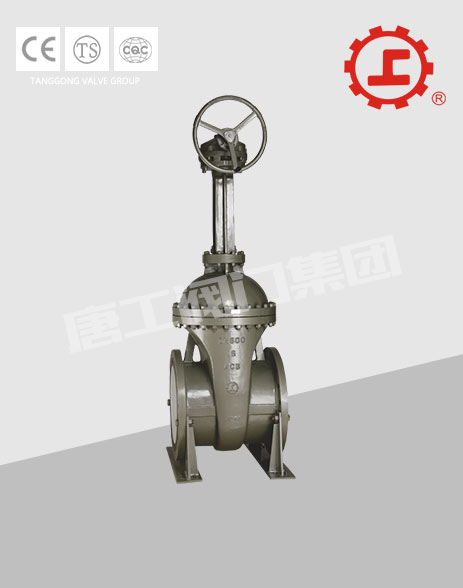

Flanged steel American standard gate valve are applicable to ANSI Class 150-600, PN2.0-16.0Mpa, JIS 10-20K, working temperature-25-425(carbon steel) and -40-500(stainless steel) pipelines for cutting off or connecting the medium in the pipelines. By choosing different materials, steel gate valve can be used in water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea and other media. It has manual, bevel gear drive and electric drive.



Technical Specification

Normal size range: 2”-24”

Normal pressure rating: PN10-PN420, CL150-2500

Material: WCB, LCB, WC6, CF8, CF8M, CF3, CF3M

Temperature range: -29℃-425℃



Standards compliance

Design and manufacture: ANSI B16.34, API600, API6D, BS1414

Face to face(end to end): ANSI B16.10, API6D

Test and inspection: API598, API6D
